Breadboard Style Prototyping Board
PT-BB-AP



RoHs Compliant

Hole Diameter:
0.047" (1.2mm)
plated holes
Hole Spacing:
0.1" (2.54mm)

Pad:
0.08" (2.032mm)
round pad
Finish:
Electroless Nickel
Immersion Gold (ENIG)
PCB Thickness:
0.062" (1.57mm)

Mounting Holes:
4-40 size, plated


The Breadboard style prototyping boards are a robust solution designed to allow quick and easy circuit prototyping. The boards offer 0.08” round pads with 0.047“ plated holes spaced 0.1” apart. Pads are connected together in rows and power rail columns are available similar to traditional solder-less breadboards.

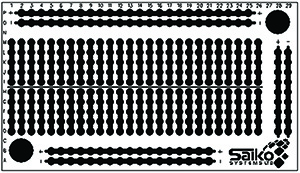

Note: Each model has a slightly varying configuration pattern. (PT-BB-AP-3.0x1.5 pictured)


Breadboard Style Prototyping Board

Datasheet

PDF File PT-BB-AP Data Sheet



Log in Required to view additional files

Please sign into your account using the login link located at the top right corner of this page to view the User Manual and additional Documentation / Software.

If you do not have a username and password, you can Create an Account here.
There is no FAQ for this product

All prices indicated on this website are retail catalog prices. If you would like to make a wholesale or large quantity purchase, please request a quote by adding the desired item(s) to the shopping cart and selecting "I want to Request a Quote" during checkout.

Note: Items marked with (*) are wholesale only. A quote is required and minimums may apply.


Ordering Information:

Board Size


PT-BB-AP-3.0x1.7
Packaging Options

Retail packaging consists of product in retail shelf ready packaging With UPC and EAN-13 barcodes.

OEM Packaging
Summary
Base Price: $0.00 Configured Price: $8.00
As configured Part Number:
PT-BB-AP-3.0x1.7
  • 3.0" x 1.7" - 360 tie points
  • OEM Packaging
