Embedded GPS + DR Module
WI-GPSDR-XX
Description
Images
Documentation & Software
Product FAQ
NRND: Not recommended for new designs. Major components used in this product have been discontinued by their respective manufacturers. This product can no longer be manufactured after current stock runs out.
The WI-GPSDR-XX Embedded GPS & DR Module combines dead reckoning (DR) and GPS to produce accurate and instantaneous positions even under the most difficult conditions.The module allows OEMs to quickly and easily add reliable position tracking to vehicles carrying high-value or perishable cargo.
Powered by the Trimble Aardvark receiver, the Embedded GPS & DR Module features instantaneous and accurate performance in deep urban canyons and dense forests. The module uses dead reckoning (DR) to estimate position based on heading, distance traveled, and the last known position. The more accurate the speed, time and heading inputs, the more accurate the dead reckoning. Direction and Tachometer inputs allow the module to integrate with the vehicle systems. The GPS continuously calibrates the gyro and speed sensors to produce the most accurate position reading possible. Furthermore, the tri-axial gyro allows the module to be mounted in any orientation, simplifying the installation and calibration process normally required for a DR system.
The Embedded GPS & DR Module provides up to three interfaces to the host CPU, allowing OEMs to choose between USB, RS232, or UART. On-board status LEDs provide visual indicators for USB Activity and the GPS Pulse Per Second (PPS) signal. A high density, right angle connector also provides access to all signals allowing easy system integration. Furthermore, the module can be configured to receive power through the USB connector or an external system power source via a terminal block. A backup battery can also be attached which enables the GPS receiver to remain active in the event of main power failure, allowing a fast system recovery.
The WI-GPSDR-XX can be purchased Module only, with a Magnetic-Mount Antenna, a Compact Embedded Antenna, or a Bulkhead Antenna. A Development kit is also available allowing OEMs to quickly evaluate the module and its features.
Datasheet
WI-GPSDR-XX Data Sheet
Log in Required to view additional files
Please sign into your account using the login link located at the top right corner of this page to view the User Manual and additional Documentation / Software.
If you do not have a username and password, you can
Create an Account here
.
There is no FAQ for this product
All prices indicated on this website are retail catalog prices. If you would like to make a wholesale or large quantity purchase, please request a quote by adding the desired item(s) to the shopping cart and selecting "I want to Request a Quote" during checkout.
Note: Items marked with (*) are wholesale only. A quote is required and minimums may apply.
Below Ordering Information is for the Module Only. Development Kit, Cable Sets, and Accessories (if available) can be found from the Related Products Section.

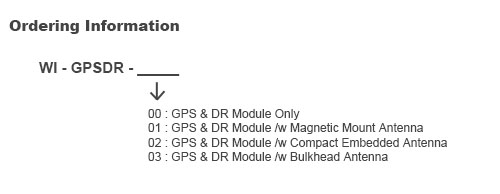

Ordering Information:
Antenna Option
GPS + DR Module Only
WI-GPSDR-00
GPS + DR Module /w Magnetic Mount Antenna [Add $25.00]
WI-GPSDR-01
GPS + DR Module /w Embedded Antenna (Discontinued) [Subtract $200.00]
WI-GPSDR-02
GPS + DR Module /w Bulkhead Antenna (avail. for Back Order) [Add $90.00]
WI-GPSDR-03
Packaging
OEM Packaging
Summary
Base Price: $0.00
Configured Price: $200.00
Quantity:
As configured Part Number:
WI-GPSDR-00
GPS + DR Module Only
OEM Packaging
